Liquid Spray Dryer: Precision and Efficiency

The liquid spray dryer is an essential industrial system designed to convert pumpable liquids—solutions, emulsions, or suspensions—into dry, free-flowing powders in a single continuous operation. By combining precise atomization with rapid drying, this technology delivers exceptional control over particle properties while maintaining the integrity of even heat-sensitive materials. It is a cornerstone of modern manufacturing across industries where powder quality, consistency, and efficiency are critical.

How It Works: The Science of Spray Drying

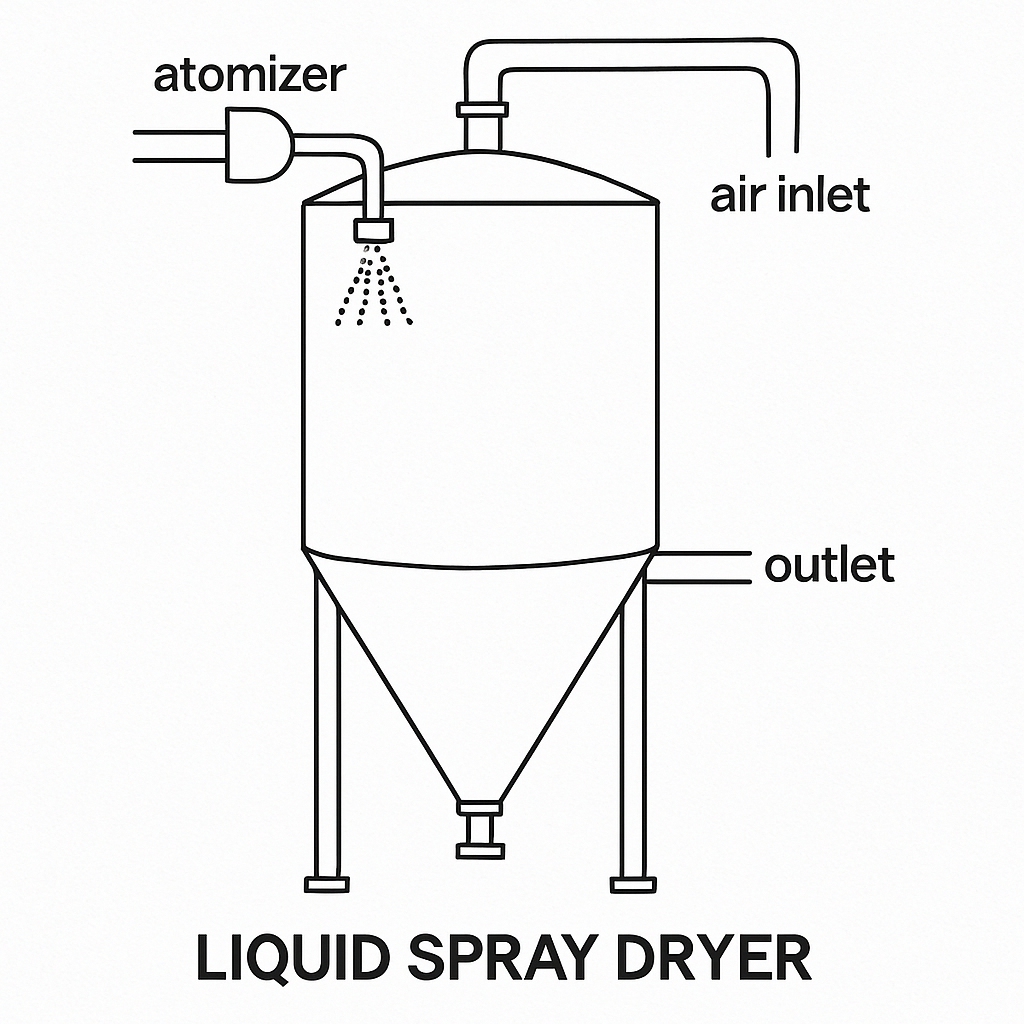

Spray drying is a streamlined and highly controlled process consisting of three fundamental stages:

Atomization

The liquid feed is dispersed into a spray of fine, uniform droplets using an atomizer. Common atomizer types include:

• High-Speed Centrifugal Atomizers: Use a rotating disk to generate droplets via centrifugal force.
• Pressure Nozzle Atomizers: Force liquid under high pressure through a small orifice.
• Two-Fluid (Pneumatic) Nozzles: Use compressed gas to shear the liquid into a mist.

Drying

The aerosolized droplets are introduced into a stream of heated air within a large drying chamber. Due to the extremely high surface area of the droplets, moisture evaporates almost instantaneously. The rapid evaporation ensures the product temperature remains relatively low, protecting heat-labile components.

Separation

The resulting dry solid particles descend to the bottom of the chamber for primary collection. The humid air and any fine powder entrained within it are then passed through secondary recovery systems—typically cyclones and bag filters—to maximize product yield and ensure clean exhaust.

Key Advantages of Spray Drying Technology

Superior Product Quality

The process offers unparalleled control over critical powder characteristics such as particle size, morphology, bulk density, and moisture content. This results in powders with excellent solubility, dispersion, and flow properties.

Gentle Processing for Sensitive Materials

Despite the use of high inlet air temperatures, the evaporative cooling effect ensures the product itself is not exposed to excessive heat. This makes it ideal for proteins, probiotics, flavors, and enzymes that require careful thermal handling.

Continuous and Scalable Operation

Liquid spray dryers are designed for round-the-clock industrial production. They can be scaled from pilot-scale units for R&D to large industrial dryers for full production, ensuring consistent output and easy process transfer.

Operational Efficiency and Automation

Modern systems are equipped with advanced PLC controls for automated, reproducible operation. Key parameters—including inlet/outlet temperatures, feed rate, and airflow—are continuously monitored and adjusted, minimizing operator intervention and reducing human error.

Versatility in Application

Capable of handling a wide range of feed materials, from simple food slurries to complex chemical and pharmaceutical solutions, with minimal adaptation.

Industries and Applications

• Food and Dairy: Milk powder, infant formula, coffee creamer, fruit and vegetable powders, flavors.
• Pharmaceuticals: Production of APIs, excipients, inhalable drugs, and herbal extracts.
• Chemicals: Catalysts, dyes, pigments, detergents, and ceramic powders.
• Biotechnology: Preservation of cultures, enzymes, and sensitive biological products.
• Environmental: Drying of wastewater sludge and byproducts for easier disposal or recycling.

Our Spray Dryer Solutions

We provide robust and technologically advanced liquid spray drying systems tailored to meet specific industrial needs:

• Custom-Engineered Designs: Available in co-current, counter-current, or mixed-flow configurations.
• Material Options: Constructed in 304 or 316L stainless steel to meet food, pharmaceutical (GMP), and chemical industry standards.
• Complete Systems Integration: We offer integrated solutions including feed preparation, hot air generation, drying, powder separation, and cooling.

Optimize your product quality and production efficiency with our advanced liquid spray dryer technology. Reach out to our engineering team to develop a drying solution that meets your exact operational and product goals.
