FZG Model Industrial Drying Equipment

Application: Plastics Processing, Food Processing
Condition: New
Place of Origin: Jiangsu, China
Key Selling Points: Energy saving
Warranty: 12 Months
Weight (KG): 1000
Machinery Test Report: Not Available
Video outgoing-inspection: Not Available
Warranty of core components: 1 Year
Core Components: Gear, Motor, Gearbox
Brand Name: Yutong
Voltage: 220-440V
Power: according to actual situation
Dimension(L*W*H): according to actual situation
Heating Method: Steam Heating
Material: SUS304, SUS316

Table of Contents

Product Detail

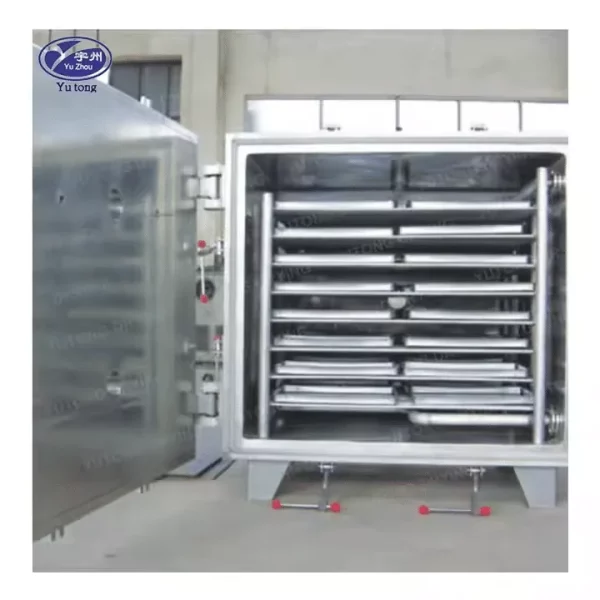

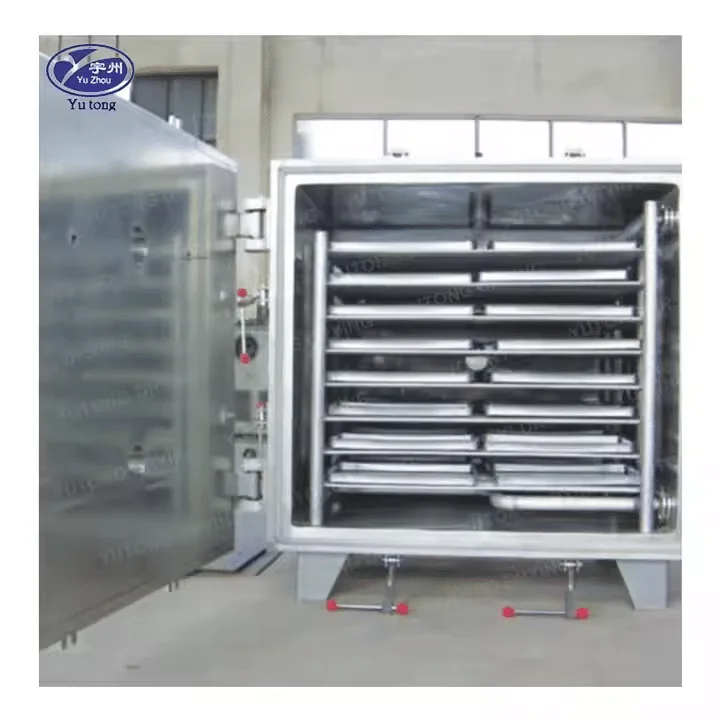

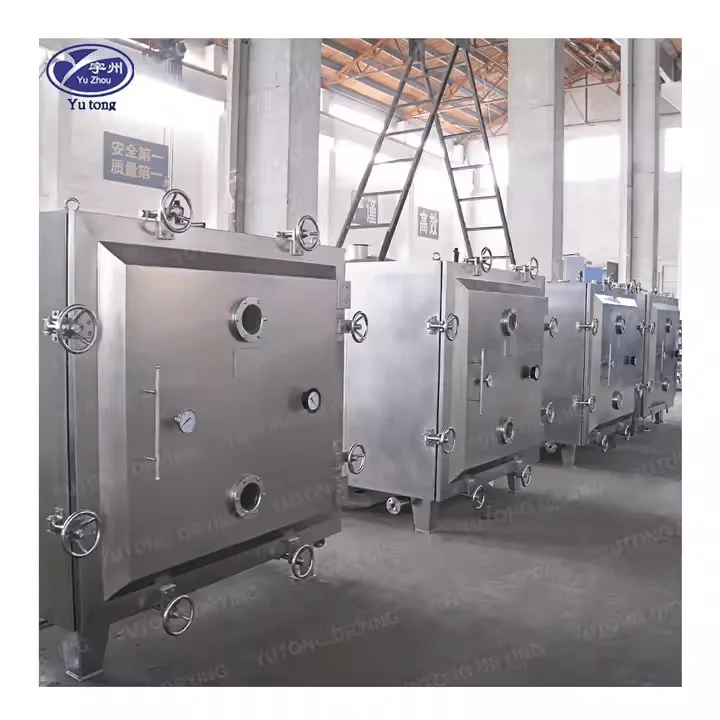

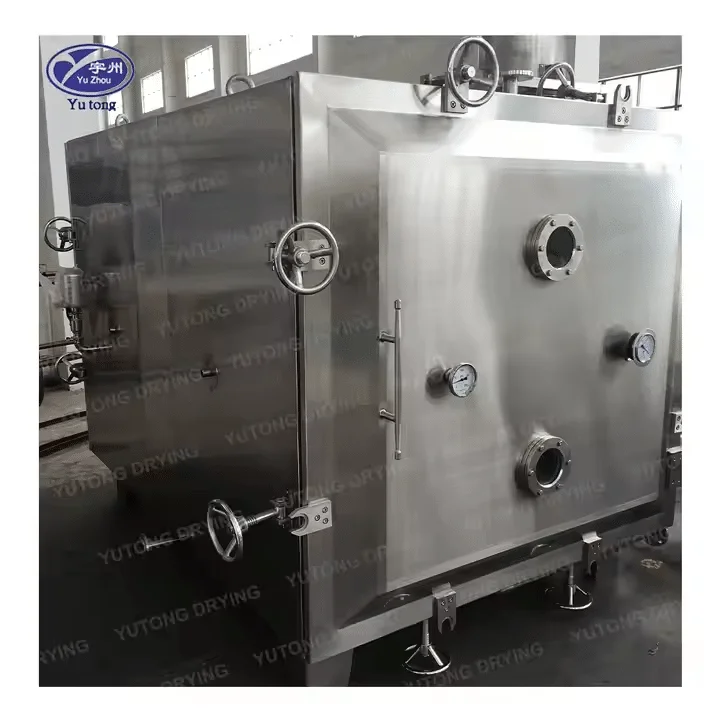

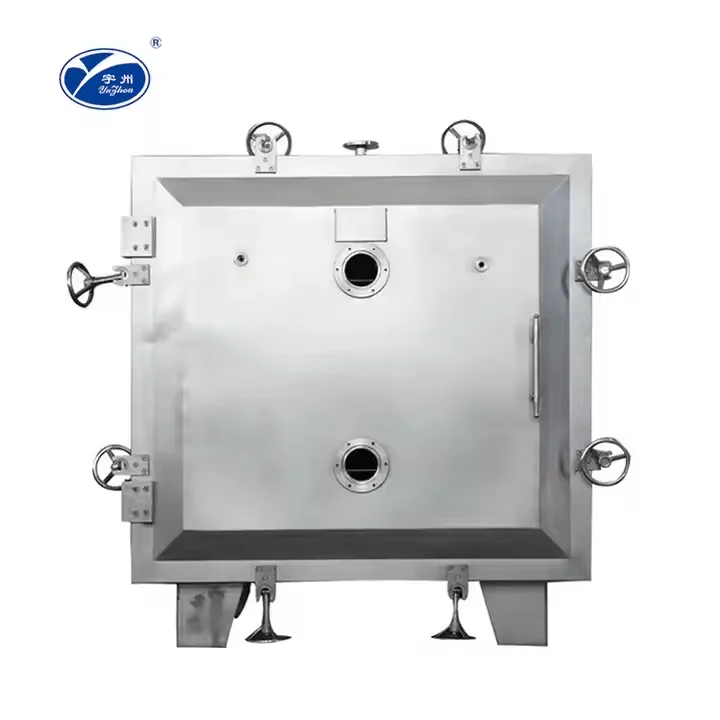

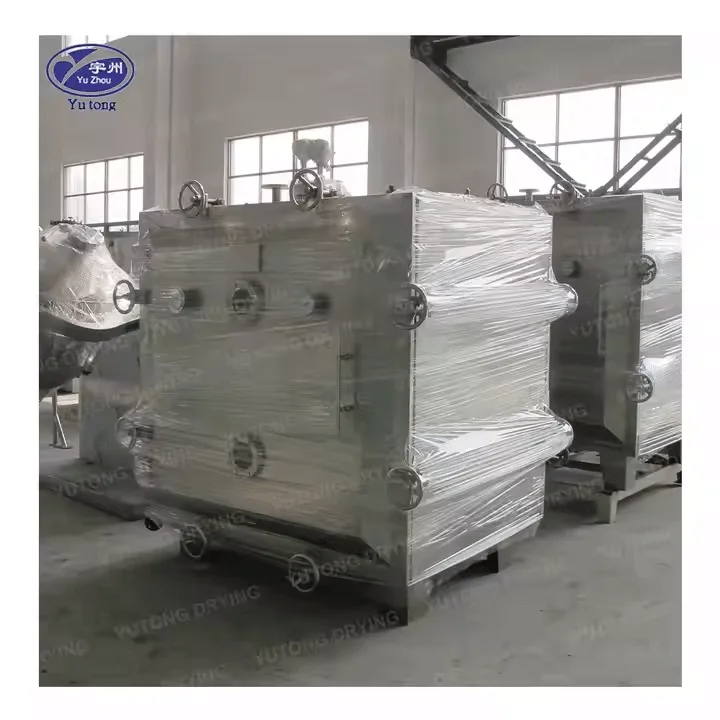

The FZG Model Industrial Drying Equipment is a highly efficient vacuum drying system designed for moisture-sensitive, heat-sensitive, and easily oxidized materials. Manufactured by Yutong with high-quality stainless steel (SUS304/SUS316L), this equipment ensures uniform drying at low temperatures, preserving product quality and minimizing thermal degradation.

Key Features:

  • Vacuum Drying Technology: Operates under reduced pressure to lower boiling points, ideal for drying delicate products.

  • Energy Efficient: Uses less energy while achieving high drying efficiency.

  • Built to GMP Standards: Hygienic design with easy-to-clean surfaces and no dead corners.

  • Customizable Sizes: Available in multiple capacities to fit various industrial requirements.

  • Safety First: Integrated vacuum protection system ensures safe operation.

Applications:

Widely used in the pharmaceutical, chemical, food, and biotech industries for drying powders, granules, herbal extracts, and sensitive materials such as active pharmaceutical ingredients (APIs), plant extracts, and fine chemicals.

Specifications

Item YZG-600 YZG-800 FZG-10 FZG-15
Dryer inside size Φ600X976 Φ800X1320 1500X1040X1200 1500X1400X1200
Dryer outside size 750X950X1050 950X1210X1350 1676X1700X1564 1676X2060X1564
Layers of baking shelves 4 5 5 8
Layers distance 85 120100 120 120
Baking plate size 310x600x45 460X640X45 460X640X45 460X640X45
Quantity of baking plate 4 4 20 32
Work pressure inside the pipe support <=0.784 <=0.784 <=0.784 <=0.784
Operate temperature of baking shelves 35-150 35-150 35-150 35-150
Vacuum degree in dryer -0.1 -0.1 -0.1 -0.1
in -0.1 Mpa 110 degree,evaporation rate of water 7.2 7.2 7.2 7.2
When use condenser,the vacuum model,powder 2X-15A2KW 2X-30A3KW 2X-70A5.5KW 2X-70A5.5KW
Without condenser,vacuum pump model and power SK-0.51.5KW SK-12.2KW SK-24KW SK-25.5KW
Weight 250 600 1400 2100

Applications

What is called vacuum is dry, in the dry supplies the vacuum condition, heat drily, utilize the vacuum pump is to smoke to angrily wetly, has acceleartated the dry speed.
