Product Detail

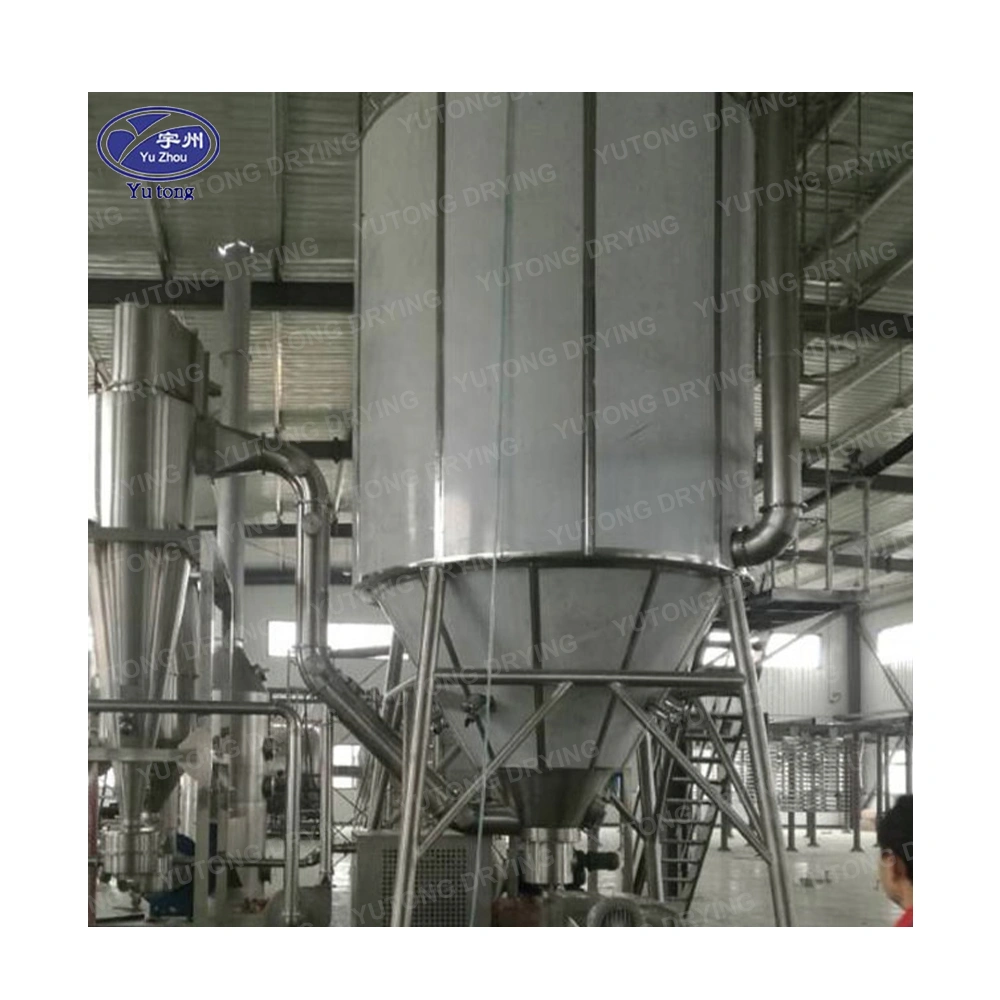

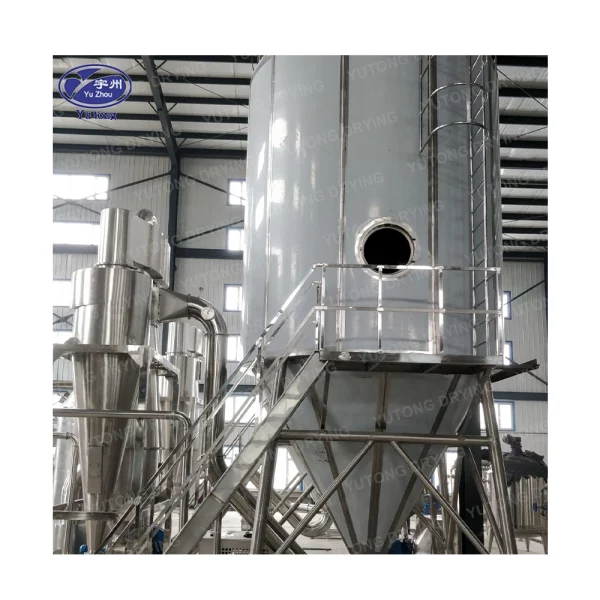

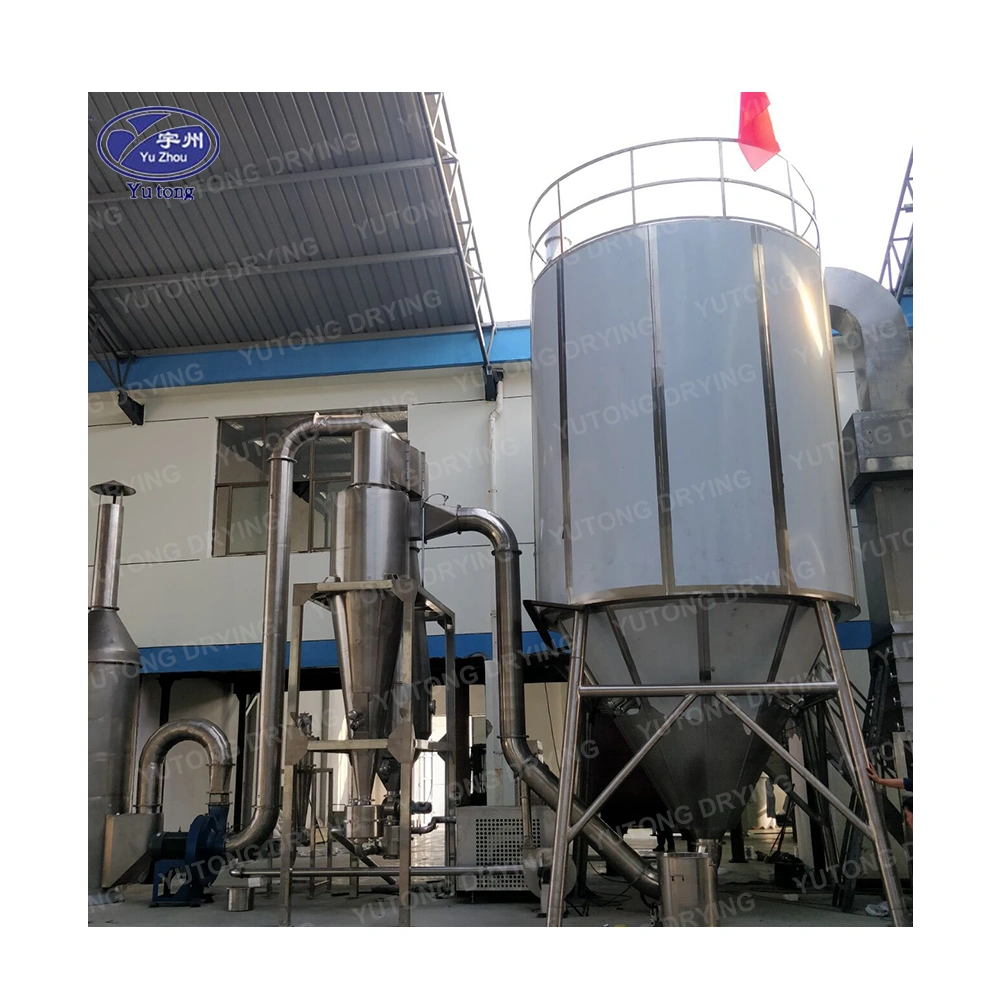

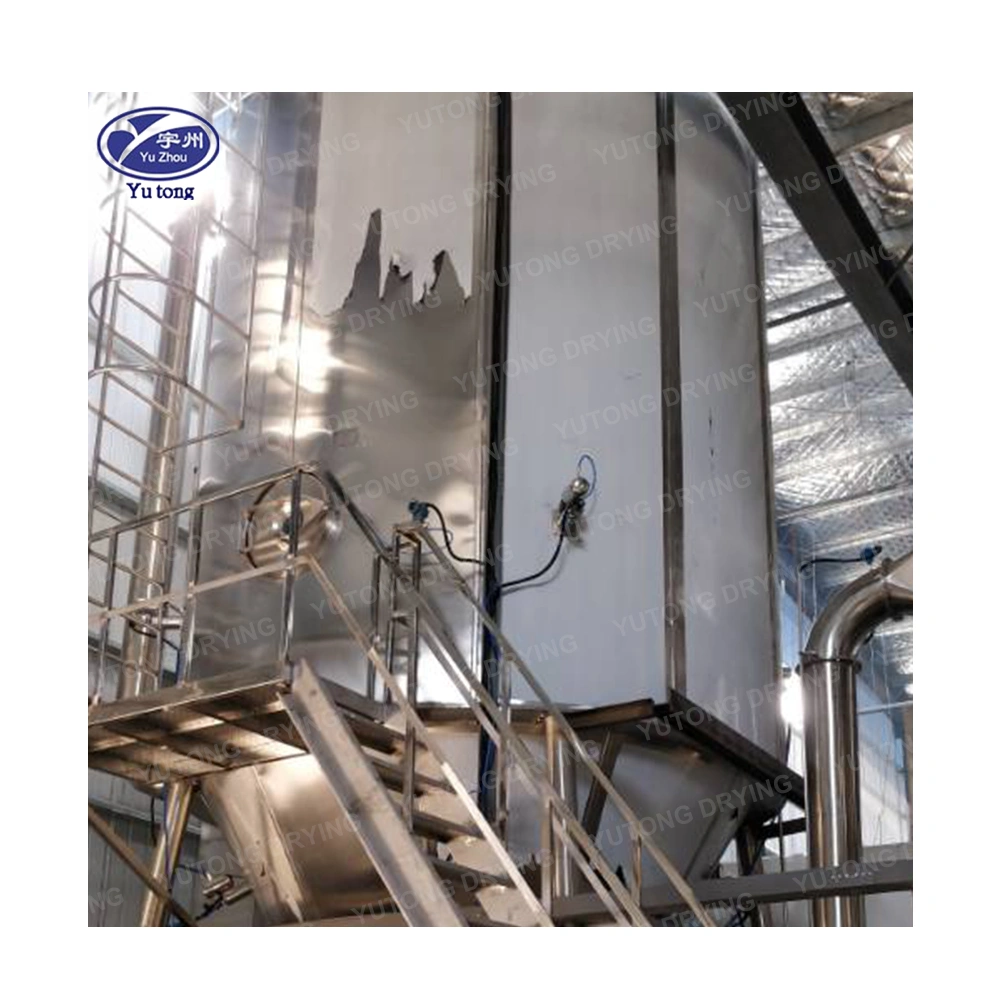

Basic Principle:High-speed centrifuge atomizing for theextract of traditional Chinese medicineis an application of centrifuge atomizingtechnique. lt also uses high-speed atomizerto make liquid material into foggy dropletto contact with hot air fully to finish instantdrying and get final powder product.
Main Features1) The tower body is equipped with cool air jacket to reduce inside tower temperature and eliminate product preheating and soften phenomenon
2) The atomizer on top of tower is equipped with cooling device to reduce atomizer temperature, at the sameeffectively eliminate material return to the top in eddy current and avoid preheat coking phenomenon3) Tower body and pipeline is equipped with manual quick-open cleaning hole and drainage hole. ClP automaticcleaning device can also equipped if needed.
4) A automatic control constant temperature feeding tank can be equipped
5) Manual high pressure washing tools can be offered as accessories together with spray dryer.6) All product contact parts are made with Stainless Steel, (or whole parts with stainless steel)7)Product collect way adopts two grade cyclones and water film duster.
8) Air inlet temperature is automatic and continuous control which is interlocked with feeding9)An air sweeping device can be optional for some products
Specifications
spec
|
ZPG-25
|
ZPG-50
|
ZPG-80
|
ZPG-100
|
ZPG-150
|
ZPG-200
|
ZPG-300
|
|
evaporation capacity(kg/h)
|
25
|
50
|
80
|
100
|
150
|
200
|
300
|
|
process amount of material liquid(kg/h)
|
25-34
|
50-68
|
80-108
|
100-135
|
150-203
|
200-270
|
300-406
|
|
output of finished pcoduct(kg/h)
|
4.8-7.2
|
9.2-14
|
14.8-22.4
|
18.4-28
|
24-42
|
36.8-56.4
|
55-85
|
|
solid content of material liquid( %)
|
18-30
|
|||||||
moisture content of finished product( %)
|
3-5
|
|||||||
electric power(kw)
|
63
|
132
|
153
|
204
|
246
|
330
|
||
heat source
|
Steam pius electricity
|
|||||||
Collecting method of product and its efficiency
|
Grade one or two or three stage cyclone wet dust remover is greater than or equal to 95%
|
|||||||
automatic control meters and instruments
|
indicator of not air and exhaust air temperature
|
|||||||
temperature of air inlet(℃)
|
160-220
|
|||||||
temperature of air outlet(℃)
|
80-100
|
|||||||
L
|
7000
|
8000
|
9800
|
11000
|
12200
|
14100
|
15000
|
|
overal dimensions(mm)
|
W
|
4000
|
5000
|
5700
|
6200
|
7000
|
7800
|
9000
|
H
|
6200
|
6900
|
8000
|
8900
|
10750
|
11900
|
13000
|
Applications
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food & Beverage Shops
