Product Detail

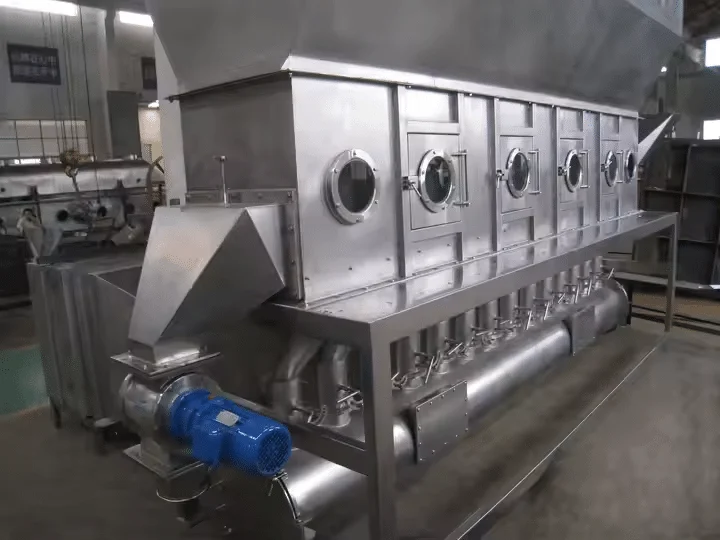

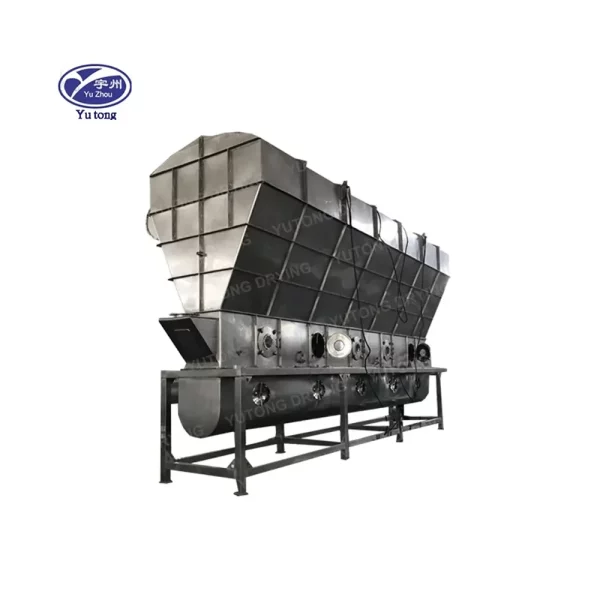

The Horizontal Fluidized Bed Dryer is an advanced and efficient drying system designed for continuous processing of granular, crystalline, or powder materials. Utilizing the principle of fluidization, hot air is evenly distributed across the material layer, causing the particles to suspend and move, resulting in uniform and rapid drying.
Key Features:
-
Continuous Operation: Ideal for large-scale production lines with high throughput.
-
Uniform Drying: Achieves consistent moisture reduction thanks to even air distribution.
-
Energy Efficient: Optimized heat exchange reduces energy consumption while maintaining drying performance.
-
Customizable Design: Available in various sizes and configurations to suit different materials and production needs.
-
Durable Construction: Made from high-quality stainless steel (SUS304/316L) for long-term use and compliance with GMP standards.
-
Optional Functions: Can be equipped with cooling, classifying, or de-dusting modules for multifunctional performance.
Specifications
| Type | Bed area(m³) | Drying | Power（Kw） | Air pressure（Pa） | Air volume(m³/H) | Air intake | Material | Heating energy consumption | Heating energy consumption Elec power(kw) |
| capacity | temp(℃) | discharge | Steam(Kg/h) | ||||||
| (water Kg/h) | temp(℃) | ||||||||
| XF-10A | 0.25 | 5.5 | 4900 | 2300 | 60~140 | 40~80 | |||
| 10~15 | |||||||||
| 50 | 30 | ||||||||
| XF-10B | 0.25 | 4 | 3800 | 2300 | |||||
| XF-20A | 0.5 | 7.5 | 5000 | 3100 | |||||
| 20~25 | 100 | 60 | |||||||
| XF-20B | 0.5 | 5.5 | 3500 | 3100 | |||||
| XF-30A | 1 | 15 | 6000 | 4200 | |||||
| 30~45 | 150 | 90 | |||||||
| XF-30B | 1 | 11 | 4700 | 4200 | |||||
| XF-50A | 2 | 22 | 7400 | 6000 | |||||
| 50~80 | 250 | 150 | |||||||
| XF-50B | 2 | 18.5 | 5900 | 6000 |
Applications
Pharmaceuticals: Drying of wet granules and powder prior to tablet compression.
Food Industry: Ideal for milk powder, coffee granules, flavorings, and fruit extracts.
Chemical Industry: Effective for drying pigments, resins, and fertilizers.
Agriculture: Drying of grains, seeds, and animal feed ingredients.
