What is Spray Drying Process

Spray drying is a fascinating and efficient method used to convert liquid substances into dry powder form. It’s widely used in various industries, from food and pharmaceuticals to chemicals and materials. In this article, we’ll explore the basics of the spray drying process, how it works, and its applications across different sectors.

The spray drying process involves transforming a liquid feed into a dry powder by rapidly drying it with a hot gas. It’s a crucial technique for creating products that require precise particle size, moisture content, and flow properties. The process is versatile and can be adapted for a range of materials, making it a popular choice in many industries.

The Basics of Spray Drying

The spray drying process begins with the preparation of the feed material, which can be a solution, suspension, or emulsion. This feed is then introduced into a spray dryer, where it is atomized into small droplets. These droplets come into contact with hot air, which quickly evaporates the moisture, leaving behind dry particles.

The size of the droplets and the speed of drying are critical factors that influence the quality of the final product. Smaller droplets dry faster, resulting in finer powders, while larger droplets take longer to dry but may produce coarser particles. By adjusting these parameters, manufacturers can tailor the process to achieve specific product characteristics.

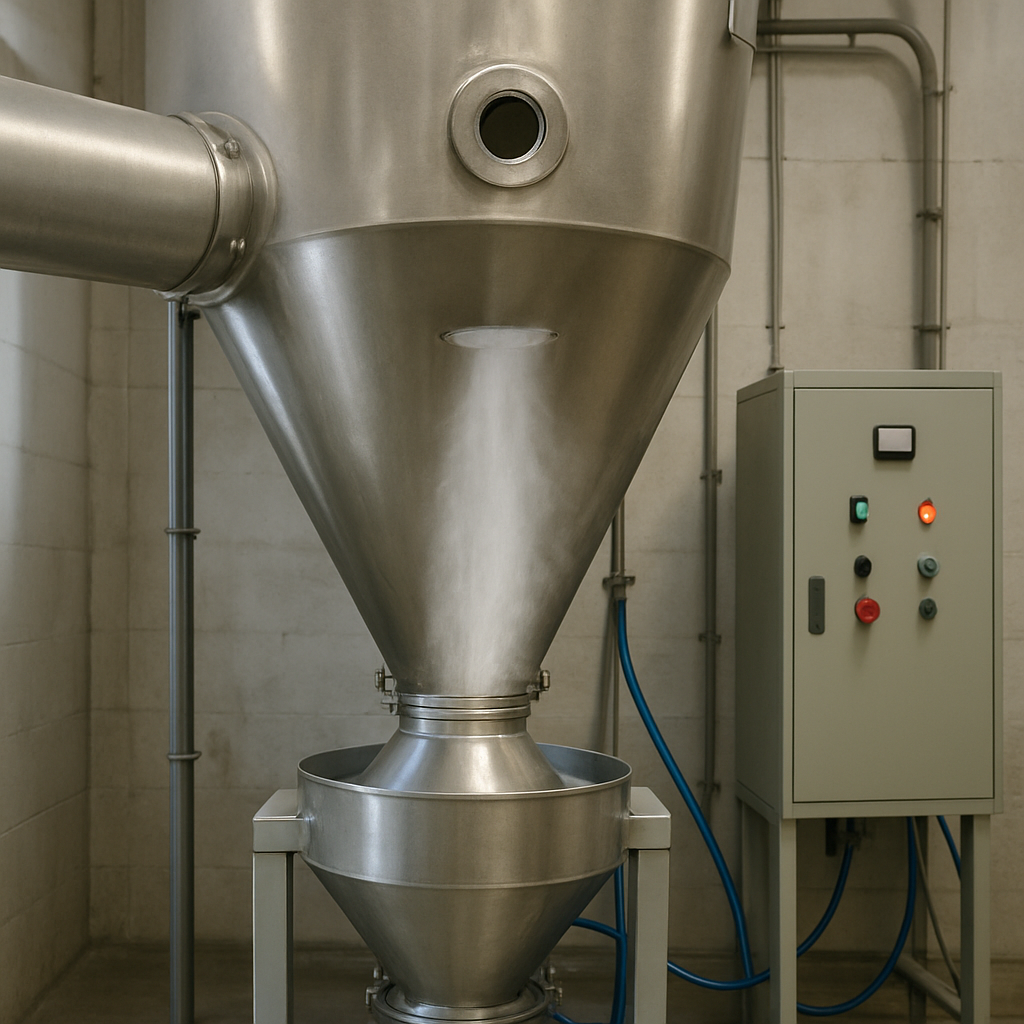

Key Components of a Spray Dryer

A typical spray dryer consists of several key components:

• Feed Pump: The feed pump is responsible for delivering the liquid feed into the spray dryer. It must be capable of handling varying viscosities and flow rates. A reliable feed pump ensures consistent feed delivery, which is essential for maintaining product quality.
• Atomizer: The atomizer is a critical component that breaks the liquid feed into fine droplets. This can be achieved using different types of atomizers, such as rotary, nozzle, or ultrasonic. Each type of atomizer has its own advantages and is selected based on the specific requirements of the process and the properties of the feed material.
• Drying Chamber: The drying chamber is where the actual drying process occurs. The hot air rapidly evaporates the moisture from the droplets, resulting in the formation of dry particles. The design of the drying chamber influences the airflow pattern, which can affect the efficiency of drying and the quality of the final product.
• Cyclone Separator: This component separates the dry particles from the exhaust air. The particles are then collected for further processing or packaging. Efficient separation is crucial to minimize product loss and ensure the purity of the final product.
• Exhaust System: The exhaust system removes the evaporated moisture and any remaining air from the drying chamber, ensuring a clean and efficient operation. Proper exhaust system design is important to prevent contamination and maintain environmental standards.

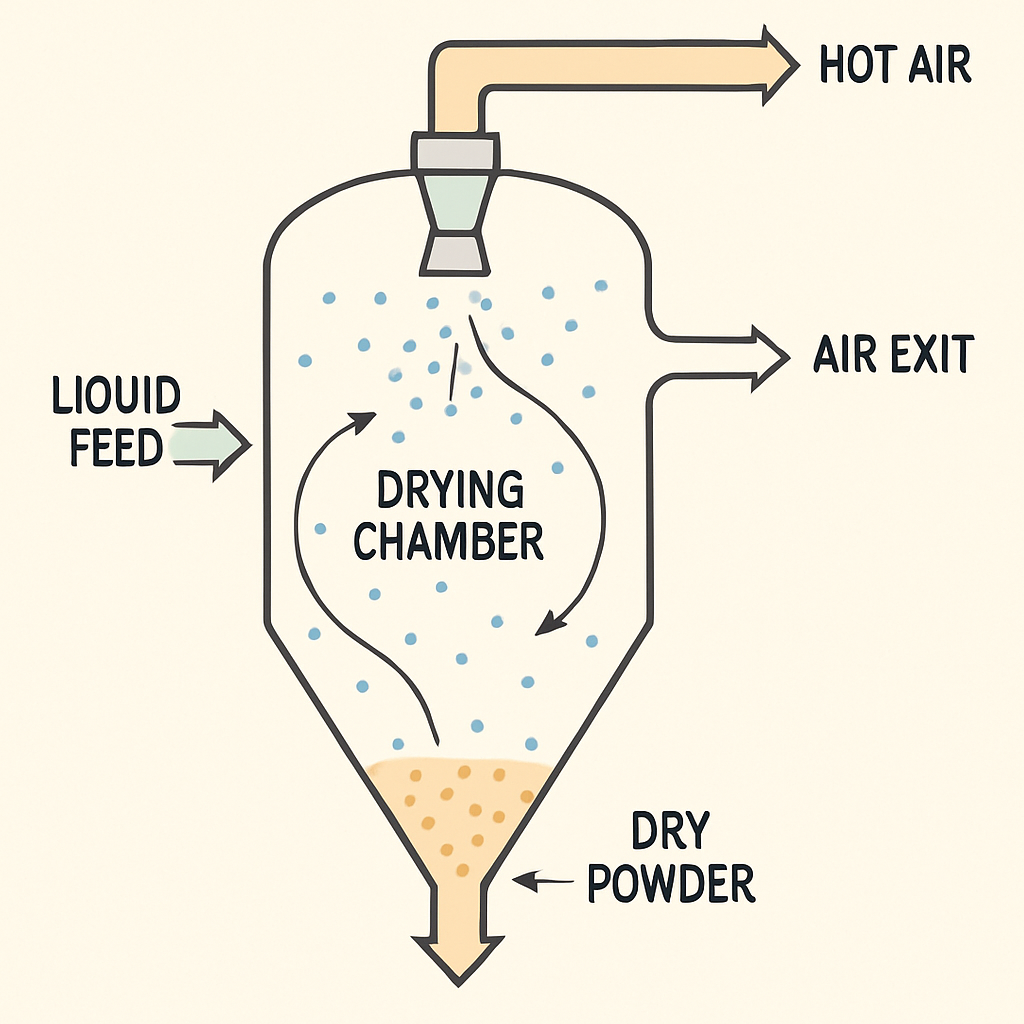

How Does the Spray Drying Process Work?

The spray drying process can be broken down into several stages:

1. Preparation of the Liquid Feed

The first step involves preparing the liquid feed. This may involve dissolving solids, creating an emulsion, or suspending particles in a liquid. The feed must be homogeneous and have the desired properties for successful spray drying.

The preparation process often includes adjusting the viscosity and concentration of the feed to optimize the spray drying conditions. Additives such as stabilizers or surfactants may be incorporated to enhance the stability of the feed and the quality of the final powder.

2. Atomization

Once the feed is ready, it’s pumped into the spray dryer and atomized into fine droplets. The choice of atomizer depends on the feed properties and the desired particle size of the final product.

Rotary atomizers are often used for high-viscosity feeds, while nozzle atomizers are suitable for feeds with lower viscosity. Ultrasonic atomizers offer precision control over droplet size, making them ideal for applications requiring uniform particle distribution.

3. Contact with Hot Air

The droplets are then introduced into the drying chamber, where they come into contact with hot air. The temperature and airflow rate are carefully controlled to ensure efficient drying without degrading the material.

The hot air can be introduced in co-current, counter-current, or mixed flow patterns, each offering different drying dynamics. Co-current flow allows for rapid initial drying, while counter-current flow can provide more controlled drying rates.

4. Evaporation of Moisture

As the droplets travel through the drying chamber, the moisture evaporates rapidly, leaving behind dry particles. The speed and efficiency of this process depend on factors like droplet size, air temperature, and humidity.

The drying kinetics are influenced by the thermal conductivity and heat capacity of the feed material, which affect how quickly the droplets reach the desired dryness. Monitoring these factors helps optimize the drying process to achieve consistent product quality.

5. Collection of Dry Particles

The dry particles are then separated from the air using a cyclone separator or other collection system. The final product can be further processed, packaged, or used directly, depending on the application.

Additional steps, such as sieving or milling, may be required to achieve the desired particle size distribution. Packaging must be done carefully to prevent moisture uptake and ensure the longevity of the product.

Applications of Spray Drying

Spray drying is used in a variety of industries due to its versatility and efficiency. Here are some common applications:

Food Industry

In the food industry, spray drying is used to produce products like milk powder, coffee creamer, and instant soups. It helps create products with consistent quality and long shelf life.

Spray drying offers the advantage of preserving flavor and nutritional content, which is essential for consumer satisfaction. Moreover, the process allows for the production of stable and easily rehydratable powders, meeting the needs of modern food processing.

Pharmaceutical Industry

Pharmaceutical companies use spray drying to create drugs with precise particle sizes and controlled release properties. It’s also used to improve the solubility and bioavailability of certain drugs.

The ability to produce uniform particles enhances the consistency of dosage forms, ensuring patient safety and efficacy. Additionally, spray drying enables the encapsulation of active pharmaceutical ingredients, protecting them from degradation.

Chemical Industry

The chemical industry relies on spray drying to produce a wide range of products, from detergents to catalysts. The process allows for precise control over particle size and composition.

Spray drying facilitates the production of complex chemical formulations, offering a reliable method for achieving desired chemical reactions and product characteristics. The ability to handle corrosive or reactive materials safely is another significant advantage.

Material Science

In material science, spray drying is used to create advanced materials like ceramics and nanomaterials. The process enables the production of uniform particles with specific properties.

Spray drying allows for the synthesis of materials with tailored porosity, surface area, and mechanical properties, which are crucial for applications such as catalysis, filtration, and additive manufacturing. The process can also be adapted to produce composite materials with enhanced functionalities.

Advantages of Spray Drying

by Supply (https://unsplash.com/@supply)

Spray drying offers several advantages, making it a preferred choice for many applications:

• Efficiency: The process is fast and efficient, allowing for large-scale production with consistent quality. The ability to produce powders in a single step reduces processing time and costs.
• Versatility: Spray drying can be used with a wide range of materials, from heat-sensitive substances to viscous liquids. This versatility makes it applicable to diverse industries with varying product requirements.
• Control: The process allows for precise control over particle size, moisture content, and other properties. This control is crucial for meeting stringent quality standards and regulatory requirements.
• Scalability: Spray drying can be easily scaled up or down to meet production needs. The flexibility in production capacity ensures that manufacturers can adapt to market demands efficiently.

Challenges in Spray Drying

Despite its advantages, spray drying also presents some challenges:

• Energy Consumption: The process can be energy-intensive, particularly for high-moisture feeds. Managing energy costs is essential for maintaining economic viability.
• Equipment Cost: The initial investment in spray drying equipment can be significant. Manufacturers must consider the long-term benefits and potential cost savings to justify the expenditure.
• Product Loss: Some material may be lost during the process, especially with fine particles. Implementing effective collection and recovery systems can mitigate these losses and improve yield.

Innovations in Spray Drying Technology

As technology advances, so does the spray drying process. Innovations in atomizer design, energy efficiency, and process control continue to improve the capabilities and applications of spray drying.

Vacuum Spray Drying

Vacuum spray drying is an emerging technology that operates under reduced pressure, allowing for lower drying temperatures. This is particularly beneficial for heat-sensitive materials, as it minimizes thermal degradation.

The lower operating temperatures reduce the risk of thermal damage to delicate compounds, preserving their functional properties. Vacuum spray drying also offers potential energy savings by reducing the heat input required for drying.

Advanced Control Systems

Modern spray drying systems are equipped with advanced control systems that allow for precise monitoring and adjustment of parameters. This leads to improved efficiency, reduced waste, and higher product quality.

These control systems utilize sensors and automation technology to optimize drying conditions in real-time, ensuring consistent product characteristics. The integration of data analytics enables predictive maintenance and process optimization.

Sustainable Practices

Sustainability is becoming increasingly important in spray drying technology. Efforts are being made to develop more energy-efficient systems and reduce the environmental impact of the process.

This includes exploring alternative energy sources, optimizing process parameters to minimize waste, and developing biodegradable or recyclable materials for equipment components. Sustainable practices not only benefit the environment but also enhance the economic viability of spray drying operations.

Conclusion

The spray drying process is a versatile and efficient method for producing dry powders from liquid feeds. Its applications span multiple industries, offering numerous benefits such as control, efficiency, and scalability. As technology continues to evolve, spray drying will remain a valuable tool for manufacturers seeking to produce high-quality products with consistent properties.

By understanding the basics of spray drying and its various applications, you’ll be better equipped to appreciate its role in modern manufacturing and product development. Whether you’re involved in food production, pharmaceuticals, or materials science, spray drying offers a reliable and effective solution for creating the products you need.

As the demand for high-quality, sustainable products grows, spray drying will continue to adapt and innovate, ensuring its relevance in the ever-changing landscape of industrial processing.
